TYEE Non-Addressable Fire Alarm System: A Reliable Choice for Vietnamese Buildings

Vietnam’s rapid urbanization and industrial growth have increased the demand for reliable fire protection systems in schools, factories, shopping malls, and residential buildings. Due to budget constraints and installation simplicity, non-addressable fire alarm systems are often the first choice for small to medium-sized facilities. TYEE provides a complete solution that is both cost-effective and technically advanced for Vietnam’s diverse building types.

This article introduces the features, components, and advantages of TYEE’s non-addressable fire alarm system, tailored to meet the fire safety needs of Vietnam’s growing infrastructure.

Key Takeaways

• TYEE Fire Alarm gives a simple and reliable fire alarm system. It is affordable and good for Vietnamese buildings. These buildings are growing fast in cities.

• TYEE’s Non-addressable systems are easy to put in and take care of. They are also easy to use. This saves time and money. You do not need special skills or training.

• The system has strong main devices like smoke and heat sensors. It also has loud alarms and manual call points. These help find fires fast and warn everyone quickly.

• TYEE Fire Alarm follows strict safety rules from Vietnam and other countries. This makes sure your building is safe and legal.

• TYEE has over 30 years of experience and many big projects. They give strong and smart fire safety solutions. These keep people and property safe every day.

Fire Safety Challenges in Vietnam

Rapid Urbanization Drives Fire Safety Demand

Vietnam is growing very quickly. Cities keep getting larger, and new buildings are built every day. This fast growth brings new fire safety problems. There are more tall apartments, busy offices, and crowded malls. The government made fire safety rules stricter. In 2023, cities got over 42 new fire safety codes. More than 78,000 new fire alarm systems were put in. Factories now use better fire protection. These changes mean strong fire alarm systems are needed to keep people safe in busy places.

Many buildings still have issues:

• Some do not meet basic fire safety needs.

• Fire safety rules are not always followed.

• People often forget to turn off electrical devices.

• Fire drills and training do not happen often.

• People know a little about fire safety, but are not really ready.

You need a system that helps you follow these new rules and keeps your building safe.

Non-Addressable Systems Fit Local Needs

Non-addressable fire alarm systems work well in Vietnam. They are simple and do not cost much. These systems use basic wiring and controls that are easy to use. You do not need special training to use them. They are good for small offices, shops, and schools. The low price and easy setup are great for projects with small budgets. You can install and fix them quickly. This means less time wasted and fewer problems for you.

• Non-addressable systems use radial wiring, so they are easy to put in and fix.

• The equipment costs less, so you save money.

• You do not need special skills to use the system.

TYEE‘s Solution: Non-Addressable Fire Alarm System

TYEE Fire Alarm gives you a system that is easy to put in and take care of. The non-addressable design uses non-polarity wiring. You do not have to worry about hard connections. The system works in many types of buildings. You can trust it in places with high humidity and changing temperatures. TYEE Fire Alarm is simple for your staff to learn. You do not need to spend a lot of time or money on training.

Feature	TYEE Non-addressable Fire Alarm System	Other Systems
Installation Complexity	Simple and fast	More complex
Maintenance Needs	Low, long battery life	More frequent upkeep
Cost	Lower	Higher
Training Required	Minimal	More advanced

You want a fire alarm system that is reliable, easy to use, and fits your budget. TYEE Fire Alarm gives you all these good things.

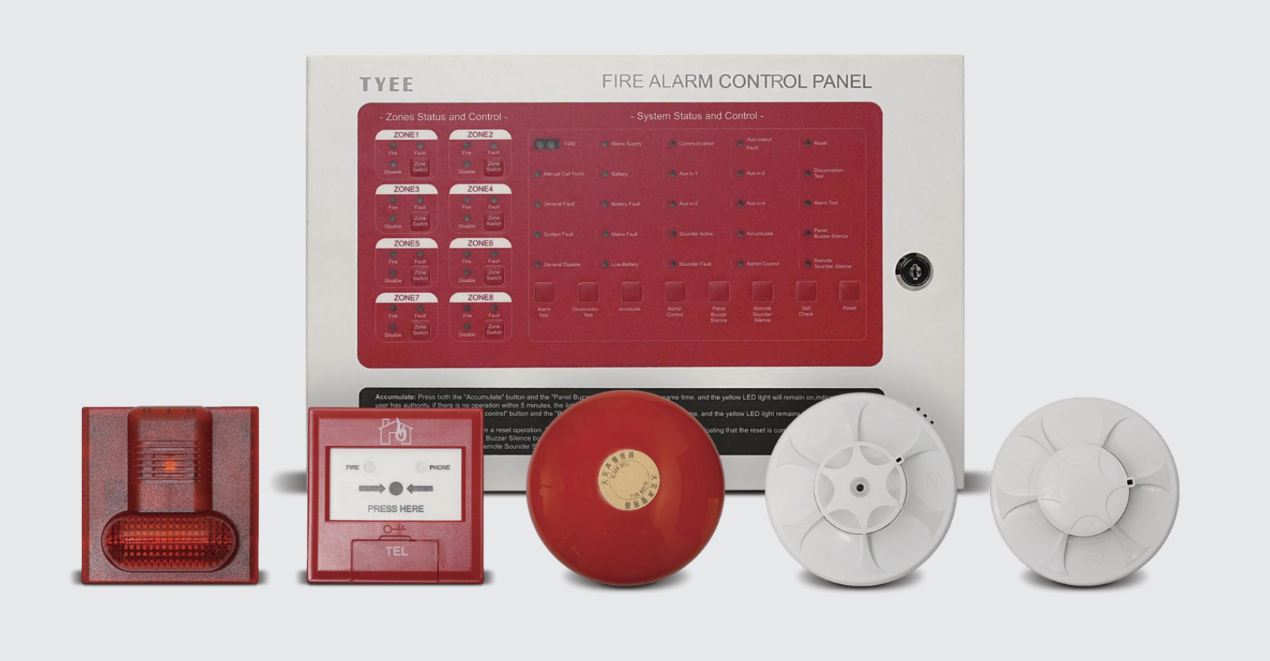

Core Devices in the System

You want a fire alarm system that gives you real value. TYEE Fire Alarm delivers this with a smart set of core devices. Each device works together to keep your building safe and your costs low. You save money because the system uses strong parts that last a long time. You also spend less on repairs and training.

Here is how each device helps protect your building:

Device	Role in Fire Detection and Response
Non-addressable Fire Alarm Controller	Shows alarms and controls the whole system
Alarm Bell: HY6711	Makes a loud sound to warn everyone
Smoke Sensor: TYI-HB-TY21	Finds smoke fast so you can act quickly
Heat Sensor: TY-HB-TW31	Senses heat from fire, even if there is no smoke
Sounder Strobe: TY-HB-SG11	Flashes bright lights and sounds an alarm
Manual Call Point: TYI-HB-SJ41	Lets you trigger the alarm by hand in an emergency

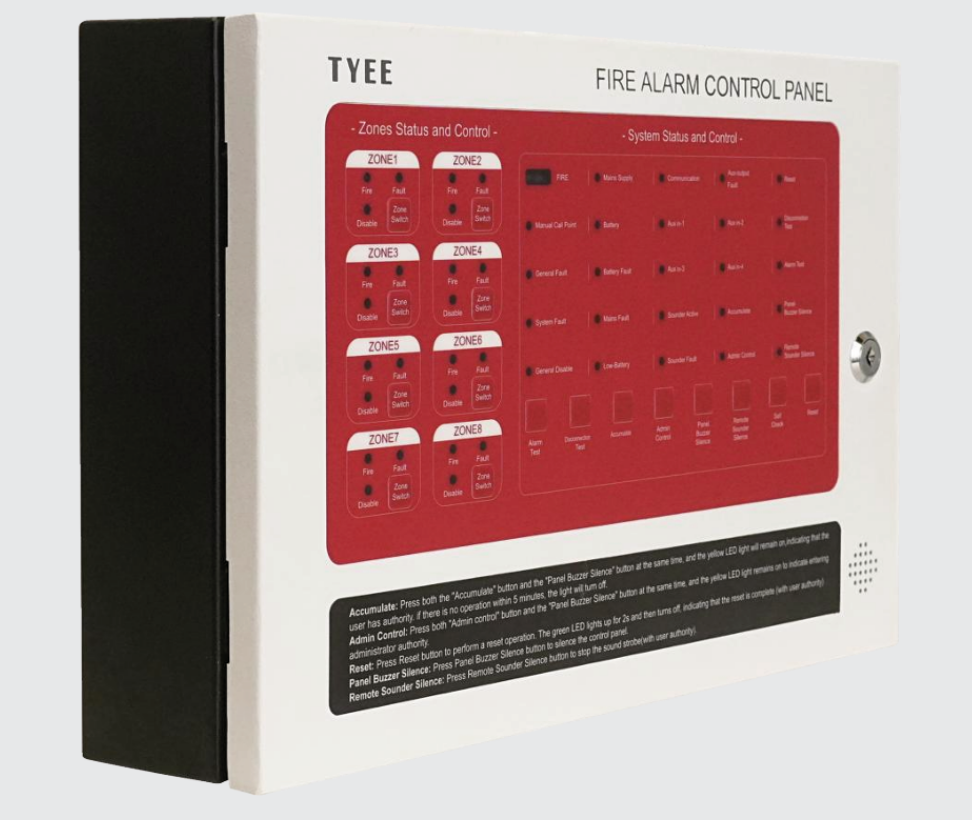

Non-addressable Fire Alarm Controller

In any modern fire safety system, the fire alarm controller plays a critical role—it detects danger, sounds the alarm, and provides a window of time for safe evacuation and emergency response. TYEE’s non-addressable fire alarm controller is built for stability, simplicity, and efficiency, making it ideal for small to medium-sized facilities in Vietnam.

• Power Supply: Supports AC input from 85V to 264V (45–55Hz), ensuring compatibility with varying local power grids.

• Backup Power: Dual 12V/7Ah batteries guarantee continued operation during outages.

• Low Power Consumption: ≤ 52W, energy efficient.

• Output Voltage: Stable DC 28V ±3%

• Design: IP30-rated metal housing with compact dimensions (390mm × 260mm × 90mm)

• Environment: Works reliably in harsh conditions from -10℃ to +45℃, RH ≤ 95%

The control panel displays real-time alarm zones clearly, allowing fast action. Its user-friendly interface ensures that even non-technical staff can operate the system with ease after minimal training.

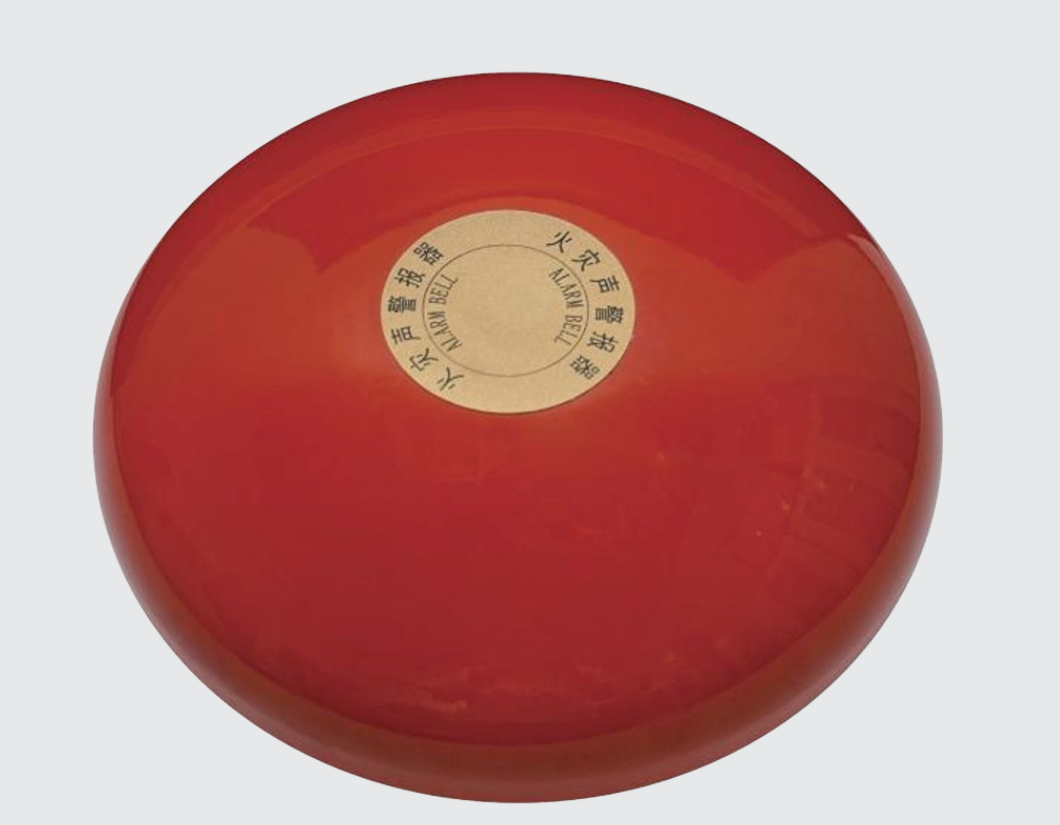

Alarm Bell: HY6711

TYEE’s HY6711 alarm bell provides a powerful and unmistakable warning when danger is detected. Its loud sound output, ranging from 75 to 120 dB, ensures everyone in the building is alerted promptly.

• Voltage: 24VDC ±15%

• Current: ≤15mA (energy-efficient)

• Design: Robust and compact (φ150mm × H55mm), suitable for indoor non-residential spaces

• Long Service Life: Built for durability with minimal maintenance

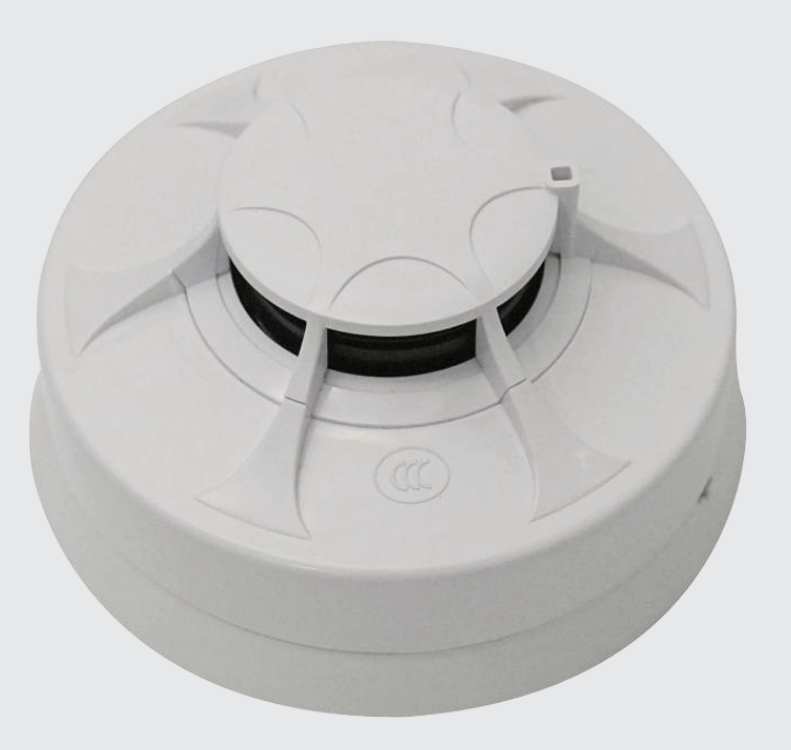

Smoke Sensor: TYI-HB-TY21

The TYI-HB-TY21 smoke detector detects early-stage smoke particles to provide fast warnings before fire becomes unmanageable. Ideal for office buildings, retail shops, and public facilities.

• Voltage: DC 20–28V

• Low Standby Current: <200μA

• Alarm Current: ≤24mA

• Environmental Range: -10℃ to +55℃, RH ≤ 95%, non-condensing

• Design: Compact size (ø96mm × H38mm/H49mm), fits various ceilings

• Resilience: Performs reliably in high-humidity environmentsHeat Sensor: TY-HB-TW31

You need a sensor that works even if there is no smoke. This heat sensor finds rising temperatures fast. It helps you catch fires that start with heat.

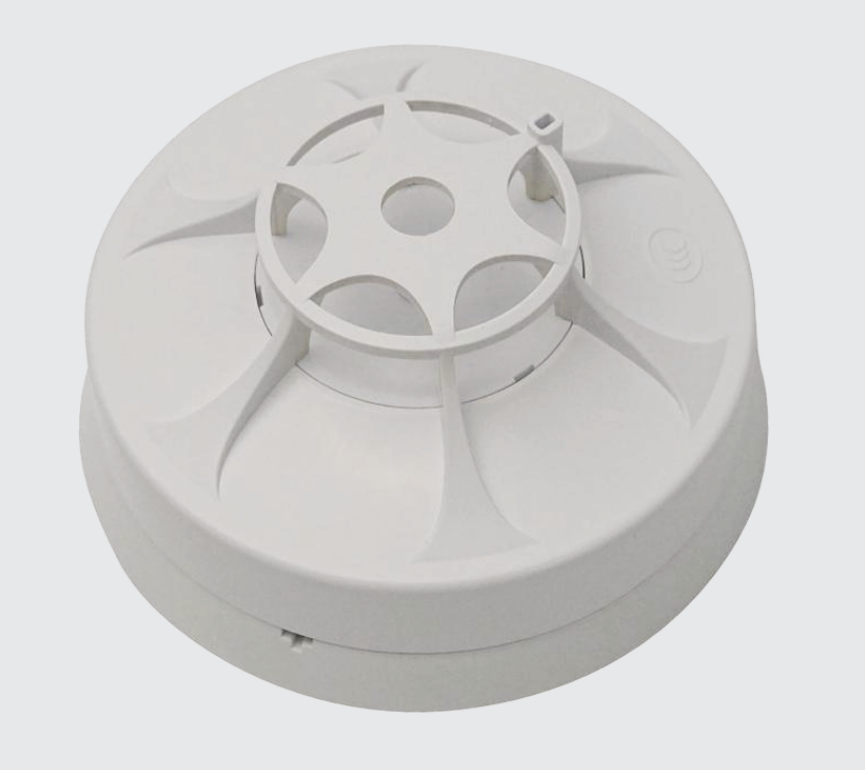

Heat Detector – TY-HB-TW31

For environments where smoke may not be present (e.g., kitchens, mechanical rooms), the TY-HB-TW31 heat detector offers dependable fire detection based on temperature rise.

• Voltage: DC 20–28V

• Current: <200μA standby, ≤24mA in alarm

• Temperature Range: -10℃ to +55℃, RH ≤ 95%

• Design: Diameter 96mm, available in two heights (38mm/49mm)

• High Sensitivity: Quickly responds to abnormal heat rise

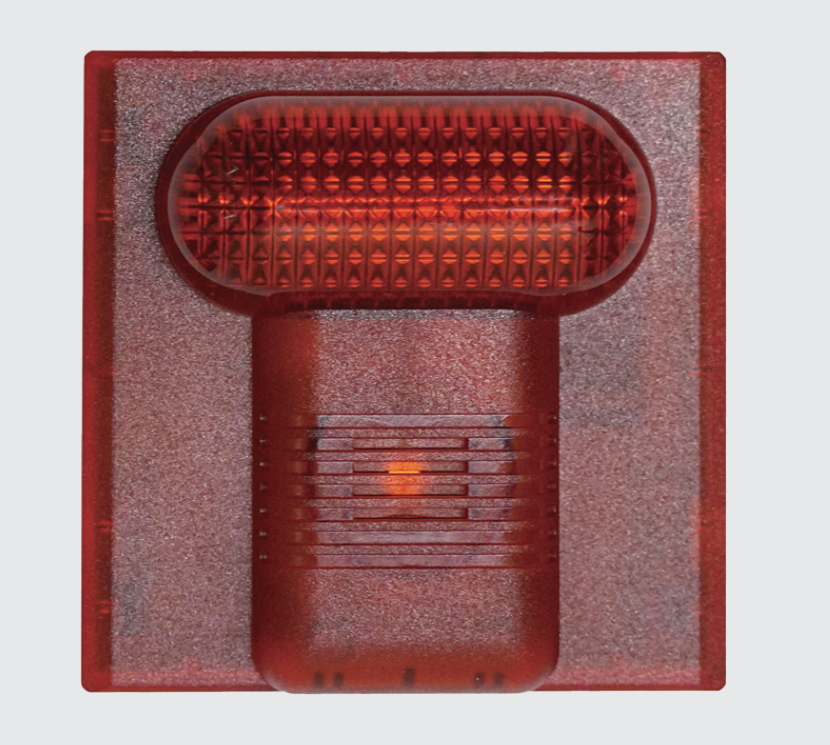

Sounder Strobe: TY-HB-SG11

In noisy or poorly lit areas, visual + audible alarms ensure effective warning. TYEE’s TY-HB-SG11 combines both:

• Voltage: DC 20–28V

• Low Current: <500μA standby, ≤7mA alarm

• Flash Frequency: 1–2 Hz

• Brightness: Visible from up to 25 meters under ambient light (100–500 lx)

• Sound Output: 75–100 dB

• Design: 85mm × 85mm × 45mm, IP-rated for indoor use

• Wiring: Non-polarized, non-coded for easy installation

This unit significantly improves visibility and audibility, reducing the risk of missed alarms during emergencies.

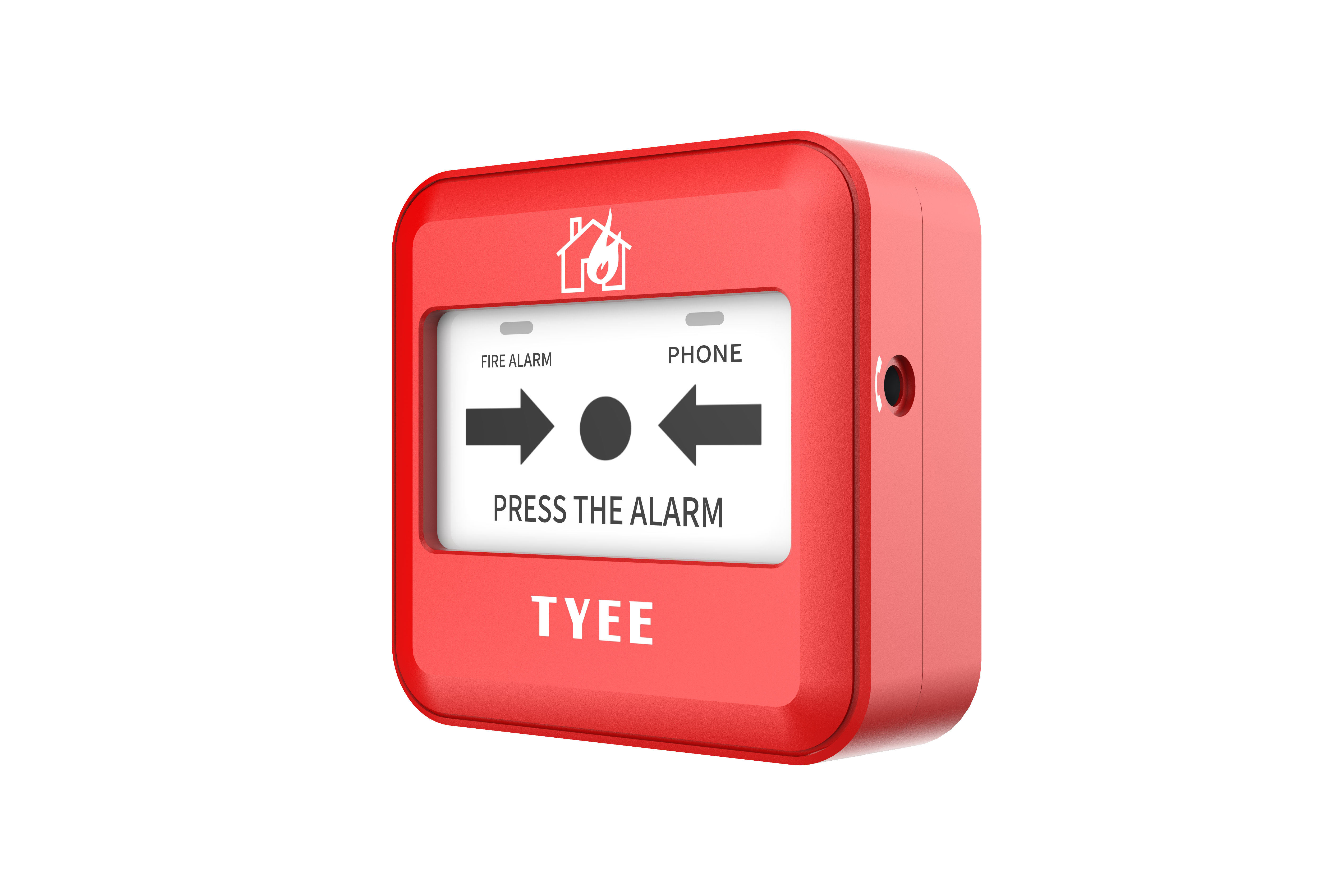

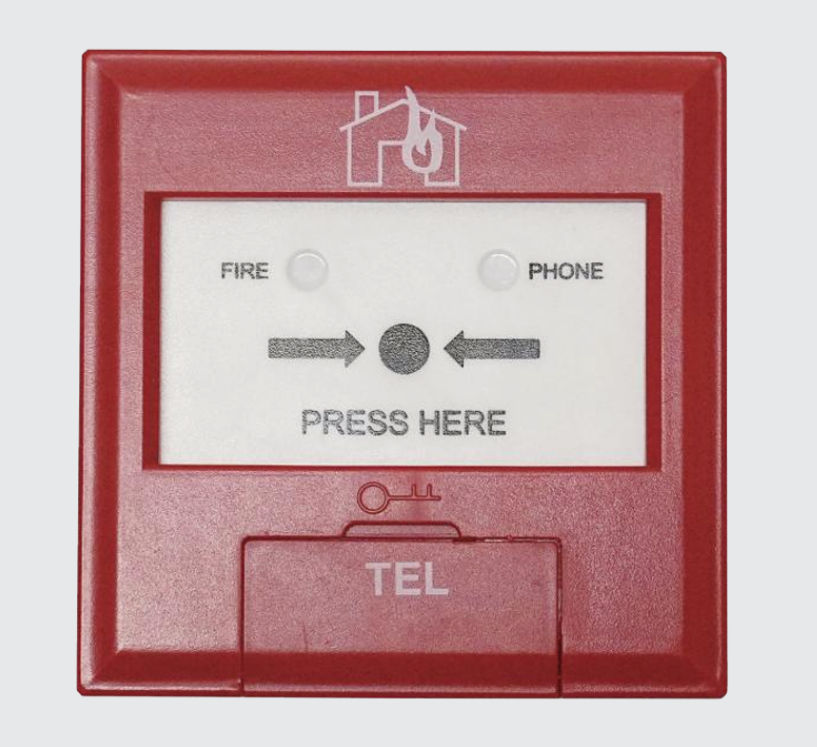

Manual Call Point: TYI-HB-SJ41

The TYI-HB-SJ41 manual call point allows building occupants to activate the alarm system manually in case of visible danger. It’s a critical backup to automatic sensors.

• Voltage: DC 20–28V

• Alarm Current: 40mA

• Standby Current: <20μA

• Operating Range: -10℃ to +55℃, RH ≤ 95%

• Design: 85mm × 85mm × 41mm, sleek and compact

• Wiring: Non-polarized, non-coding, simplifying field wiring

Its quick-response mechanism enables fast manual intervention, supporting faster evacuation and emergency alerts.

Tip: TYEE Fire Alarm uses tough, reliable parts. You save money over time because you do not need to replace them often. The system is easy to maintain, so you spend less on service and training.

About TYEE – Trusted Fire Protection Partner

Over 30 Years of Expertise in Fire Safety

Founded in 1992 and headquartered in Haining, China, Zhejiang Taiyi Fire Holdings Co., Ltd. (TYEE) is a national-level high-tech enterprise recognized as one of China’s “Specialized, Refined, Differential, and Innovative Small Giant” enterprises. TYEE has dedicated over 30 years to delivering professional, integrated fire protection solutions for buildings of today and tomorrow.

With a production base covering 53 acres and a 33,000 sqm standardized factory, TYEE has participated in thousands of large- and medium-scale fire protection projects both domestically and internationally. Its fire protection products are widely applied in public, industrial, and commercial buildings across Asia.

National Standards Contributor and Award-Winning Innovator

TYEE has actively participated in drafting several Chinese national fire safety standards, especially in the fields of emergency lighting and automatic fire alarm systems. The company’s self-developed evacuation products have won the Red Dot Design Award (Germany) and have been recognized for six consecutive years as one of the Top 10 Intelligent Evacuation Brands in China.

As a member of China’s National Standardization Committee and a AAA-rated enterprise of the China Fire Protection Association, TYEE upholds high industry credibility and influence.

Independent R&D and In-House Manufacturing

TYEE operates with full in-house capabilities:

• R&D Team: Over 80 engineers

• Production Lines: SMT mounting, injection molding, CNC laser processing, and more

• R&D Facilities: 5 professional labs covering EMC, aging tests, simulation, and reliability

• Certifications: 74 patents, 58 software copyrights, CE (EU), TIS (Thailand)

With annual R&D investments exceeding 10 million USD, TYEE maintains strict quality control and ensures every product meets international standards

Meets Standards

You want a fire alarm system that follows strict safety rules. TYEE Fire Alarm gives you this safety. The system has top certificates like ISO9001, ISO14001, UL, and CE. These certificates mean the products pass hard tests for quality and safety. You can trust each device to work as it should. TYEE Fire Alarm also follows Vietnamese fire safety laws. You do not need to worry about failing checks. You get a system that meets world and local standards.

You want a fire alarm system you can trust. TYEE Fire Alarm gives you proven safety, easy setup, and real savings. You meet all fire safety rules and protect your building with strong, lasting devices. Make the smart move. Choose TYEE for your next project. Keep your people and property safe every day.

FAQ

How easy is it to install the TYEE Non-addressable Fire Alarm System?

You can install the system quickly. The non-polarity wiring makes setup simple. You do not need special skills or tools. Your team can finish the job fast and start protecting your building right away.

Tip: You save time and money with every installation.

Can the system work in humid or hot environments?

Yes! TYEE designed the system for tough conditions. You get reliable performance in high humidity and temperatures up to 45°C. Your building stays protected, even in Vietnam’s challenging climate.

Do I need special training to use or maintain the system?

No special training needed. You can learn the controls in minutes. Your staff can check, test, and reset the system easily. TYEE keeps everything user-friendly.

• Simple buttons

• Clear alarms

• Easy maintenance

How loud is the alarm bell?

The alarm bell reaches up to 120 dB. Everyone in your building will hear it. You get a strong warning that helps people react fast and stay safe.

Does the TYEE system meet Vietnamese fire safety standards?

Yes, it does. TYEE holds top certifications like ISO, UL, and CE. You meet all local fire safety rules. You pass inspections and keep your building safe and legal.

Note: Choosing TYEE means you never worry about compliance.
